HDD Machines
Four Important Advantages
Hunan ZLCONN is professional 22T,25T,26T,32T,36T,40T, 20T Horizontal Directional Drilling, HDD Machine manufacturer. Advantages:
- 9 workshops of 60000sqm.
- Shaft, rack and pinion ,beam.. self produce.
- 50no.s per month.
- HDD Machine,Horizontal Directional Drilling surface by electronicphoresis,10years no rust..
Six Important Features
- No impact on ground buildings and traffic.
- Smaller in size and fewer demands on space.
- Easier operation, bigger force, smooths rotation and bigger torque.
- Rack and pinion system, more stable drilling ,wire and wireless controller
- Cummins diesel engine ,Eaton motor, longer life span and less maintenance
- Oversea service provided.

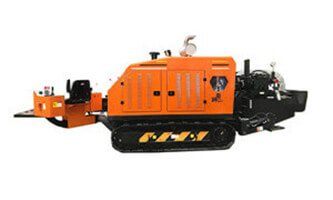

HDD Machine ZL200A
20t, Cummins 112kw
Click Here for Specification
Specification
×| Model | Unit | ZL200A |
| Engine power | KW | 112 |
| Max. Pull / Push force | KN | 200~220 |
| Max. Pull / Push speed | m/min | 34 |
| Max.Torque | N.M | 7000 |
| Max. Slewing speed | r/min | 136 |
| Max. Flow of slurry pump | L/min | 240 |
| Max.pressure of slurry pump | Mpa | 8 |
| Max. drill pipe diameter | mm | Ф800 |
| Max. Working distance | m | 400 |
| Crawler speed | Km/h | 3 |
| Drilling rod | mm | Ф73/Ф60×3000 |
| Push-pull type | Rack & Pinion | |
| Max. grade ability | ° | 25° |
| Drillling Angle | ° | 10-20° |
| Weight | T | 8.3 |
| Dimension(L*W*H) | mm | 6570*2100*2560 |

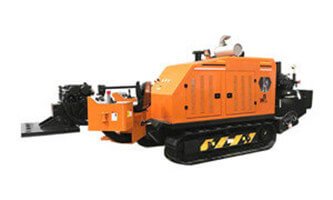

HDD Machine ZL260A
26t, Cummins 132kw
Click Here for Specification
Specification
×| Model | Unit | ZL260A |
| Engine power | KW | 132 |
| Max. Pull / Push force | KN | 260~280 |
| Max. Pull / Push speed | m/min | 34 |
| Max.Torque | N.M | 8800 |
| Max. Slewing speed | r/min | 136 |
| Max. Flow of slurry pump | L/min | 250 |
| Max.pressure of slurry pump | Mpa | 8 |
| Max. drill pipe diameter | mm | Ф800 |
| Max. Working distance | m | 400 |
| Crawler speed | Km/h | 3 |
| Drilling rod | mm | Ф73×3000 |
| Push-pull type | Rack & Pinion | |
| Max. grade ability | ° | 25° |
| Drillling Angle | ° | 10-20° |
| Weight | T | 8.7 |
| Dimension(L*W*H) | mm | 6570*2100*2560 |

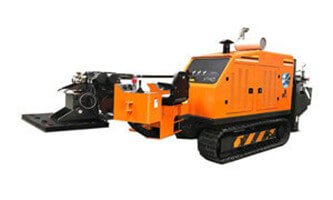

HDD Machine ZL320A
32t, Cummins 154kw
Click Here for Specification
Specification
×| Model | Unit | ZL320A |
| Engine power | KW | 154 |
| Max. Pull / Push force | KN | 320~340 |
| Max. Pull / Push speed | m/min | 32 |
| Max.Torque | N.M | 12400 |
| Max. Slewing speed | r/min | 110 |
| Max. Flow of slurry pump | L/min | 320 |
| Max.pressure of slurry pump | Mpa | 8 |
| Max. drill pipe diameter | mm | Ф900 |
| Max. Working distance | m | 500 |
| Crawler speed | Km/h | 3 |
| Drilling rod | mm | Ф73/Ф76×3000 |
| Push-pull type | Rack & Pinion | |
| Max. grade ability | ° | 25° |
| Drillling Angle | ° | 10-20° |
| Weight | T | 8.9 |
| Dimension(L*W*H) | mm | 6300*2100*2560 |
HDD Machine ZL320B
32t, Cummins 154kw
Click Here for Specification
Specification
×| Model | Unit | ZL320B |
| Engine power | KW | 154 |
| Max. Pull / Push force | KN | 320~350 |
| Max. Pull / Push speed | m/min | 32 |
| Max.Torque | N.M | 13000 |
| Max. Slewing speed | r/min | 110 |
| Max. Flow of slurry pump | L/min | 350 |
| Max.pressure of slurry pump | Mpa | 8 |
| Max. drill pipe diameter | mm | Ф900 |
| Max. Working distance | m | 500 |
| Crawler speed | Km/h | 3 |
| Drilling rod | mm | Ф73/Ф76×3000 |
| Push-pull type | Rack & Pinion | |
| Max. grade ability | ° | 25° |
| Drillling Angle | ° | 10-20° |
| Weight | T | 8.9 |
| Dimension(L*W*H) | mm | 6300*2100*2560 |

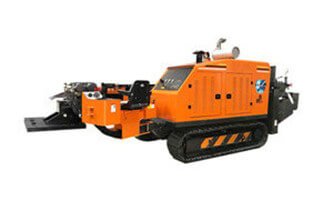

HDD Machine ZL360A
36t, Cummins 154kw
Click Here for Specification
Specification
×| Model | Unit | ZL360A |
| Engine power | KW | 154 |
| Max. Pull / Push force | KN | 360~380 |
| Max. Pull / Push speed | m/min | 32 |
| Max.Torque | N.M | 13600 |
| Max. Slewing speed | r/min | 110 |
| Max. Flow of slurry pump | L/min | 350 |
| Max.pressure of slurry pump | Mpa | 8 |
| Max. drill pipe diameter | mm | Ф900 |
| Max. Working distance | m | 500 |
| Crawler speed | Km/h | 3 |
| Drilling rod | mm | Ф73/Ф76×3000 |
| Push-pull type | Rack & Pinion | |
| Max. grade ability | ° | 25° |
| Drillling Angle | ° | 10-20° |
| Weight | T | 8.9 |
| Dimension(L*W*H) | mm | 6300*2100*2560 |

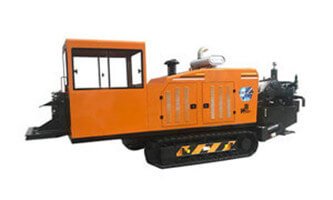

HDD Machine ZL400A
43t, Cummins 193kw
Click Here for Specification
Specification
×| Model | Unit | ZL400A |
| Engine power | KW | 193 |
| Max. Pull / Push force | KN | 430 |
| Max. Pull / Push speed | m/min | 32 |
| Max.Torque | N.M | 16000 |
| Max. Slewing speed | r/min | 110 |
| Max. Flow of slurry pump | L/min | 400/450 |
| Max.pressure of slurry pump | Mpa | 10 |
| Max. drill pipe diameter | mm | Ф1200 |
| Max. Working distance | m | 600 |
| Crawler speed | Km/h | 3 |
| Drilling rod | mm | Ф76/Ф83×3000 |
| Push-pull type | Rack & Pinion | |
| Max. grade ability | ° | 25° |
| Drillling Angle | ° | 10-20° |
| Weight | T | 11.5 |
| Dimension(L*W*H) | mm | 7000*2235*2580 |
HDD Machine ZL450A-900A
45t, Cummins 193kw
HDD Machine ZL600A-1200A
60t, Cummins 243kw
HDD Machine ZL320B-450B
32t, Cummins 154kw
